Awesome applications require awesome gaskets
revoseal sealing concept
Our products are unique in many ways. Our patented gaskets have the lowest leakage rate on the international market. We have developed a sealing concept based on a soft-layer / metal combination. A metallic seal is created even at very low tightening torques. As a result, fugitive emissions at flanged joints can be reduced to almost zero, blowout resistance can be dramatically increased and, in addition, pressure and temperature fluctuations can be compensated. Maintenance costs are reduced because retightening of bolts is not necessary. The environment and personnel are protected. Our gaskets are available in all common standard dimensions DIN and ANSI and in special dimensions and geometries up to 4000 mm outer diameter. Part of our service is the calculation, installation and maintenance of our products. With revoseal you increase the productivity of your plants and noticeably reduce your costs. Unscheduled downtime is minimized by revoseals sealing concept.

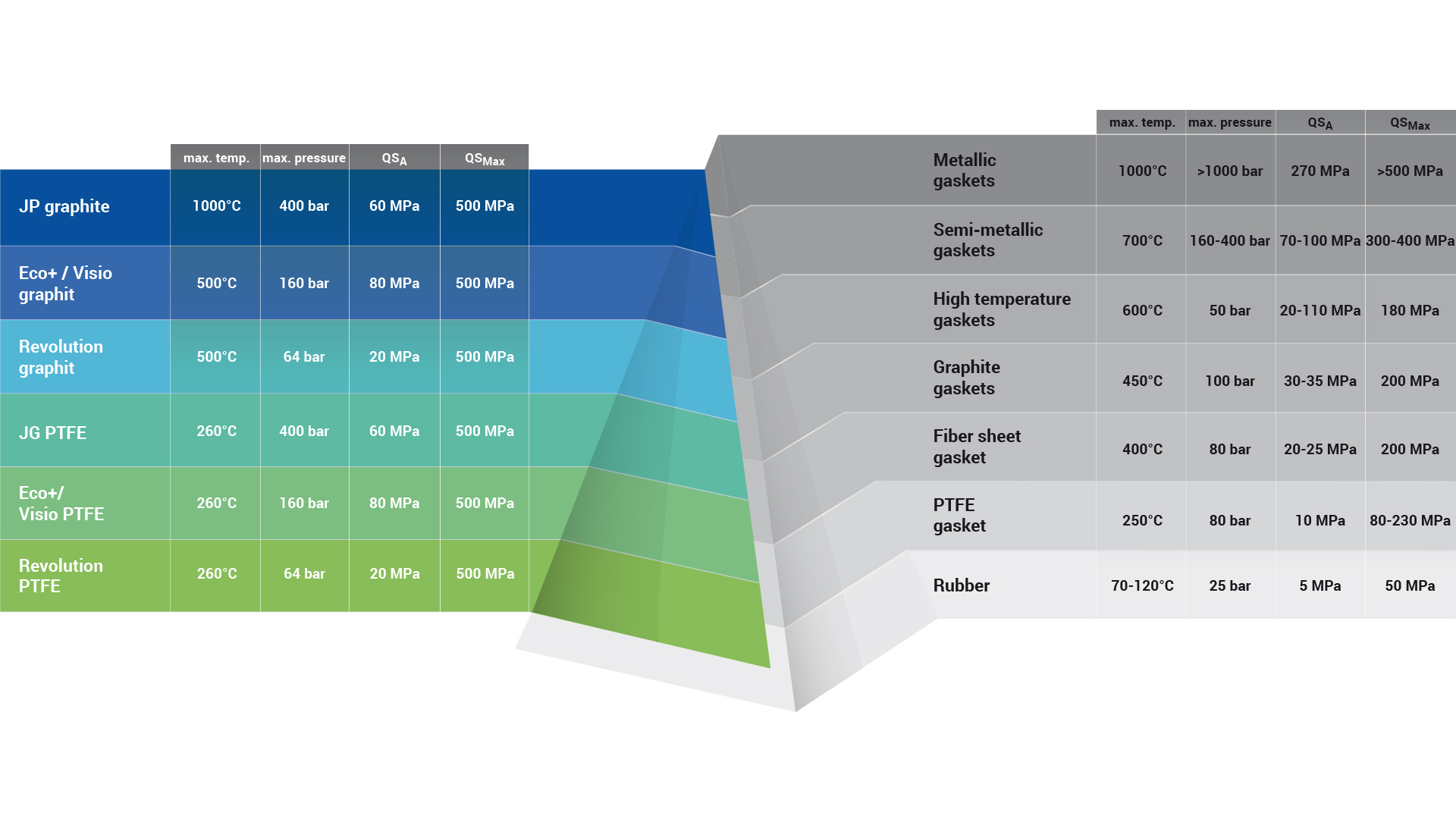

Classification of revoseal gaskets in the pyramid standard gasket (sorted by temperature resistance)
Applications
The revoseal gaskets can be a better alternative for a wide range of applications. Due to the very low leakage rate (The TA Luft – a German standard for leackage measurement – result of the revoseal JP is 6.4×10-11 mbar x l/ (m x s)), they are used in helium and hydrogen applications or others containing fugitive or toxic gases. The metallic contact can compensate for large pressure and temperature fluctuations. revoseal gaskets provide leak-free operation of equipment in cryogenic applications as well as in high-temperature applications such as cracking furnaces. In steam applications, revoseal gaskets reduce the risk of leakage during steam hammer or pressure spikes due to their high spring elasticity and blowout resistance. Many companies in the chemical industry use them also as equipment gaskets, as high surface pressure can be achieved even with low bolt force.
What moves and motivates us is “More safety for people and the environment” through technological progress without losing sight of the needs of our customers. In addition to our products, as a sealing expert we also offer various services, such as training courses in flange assembly or sealing technology in general, flange calculations according to 1591-1 or support during shutdowns as e.g. quality assurance during flange assembly. Our patented and certified gaskets have the lowest leakage rate on the market. It is important to us to meet every customer requirement. Therefore, in addition to our high performance gaskets, we at revoseal naturally also sell high quality standard gaskets and this at competitive prices. We would also be happy to advise you personally in detail. Simply contact us for this purpose. We are a German manufacturer with “extended workbenches” within Europe
Product-Finder
revoseal JG/JP
- Lowest leakage rates on market
- Temperature: -270°C to +1000°C
- Pressure: vacuum to 400 bar
revoseal ECO+
- Temperature: -270°C to +500°C
- Metal flat profile gasket with resilient cog
- Total thickness: 1.6mm (+/- 0.1mm)

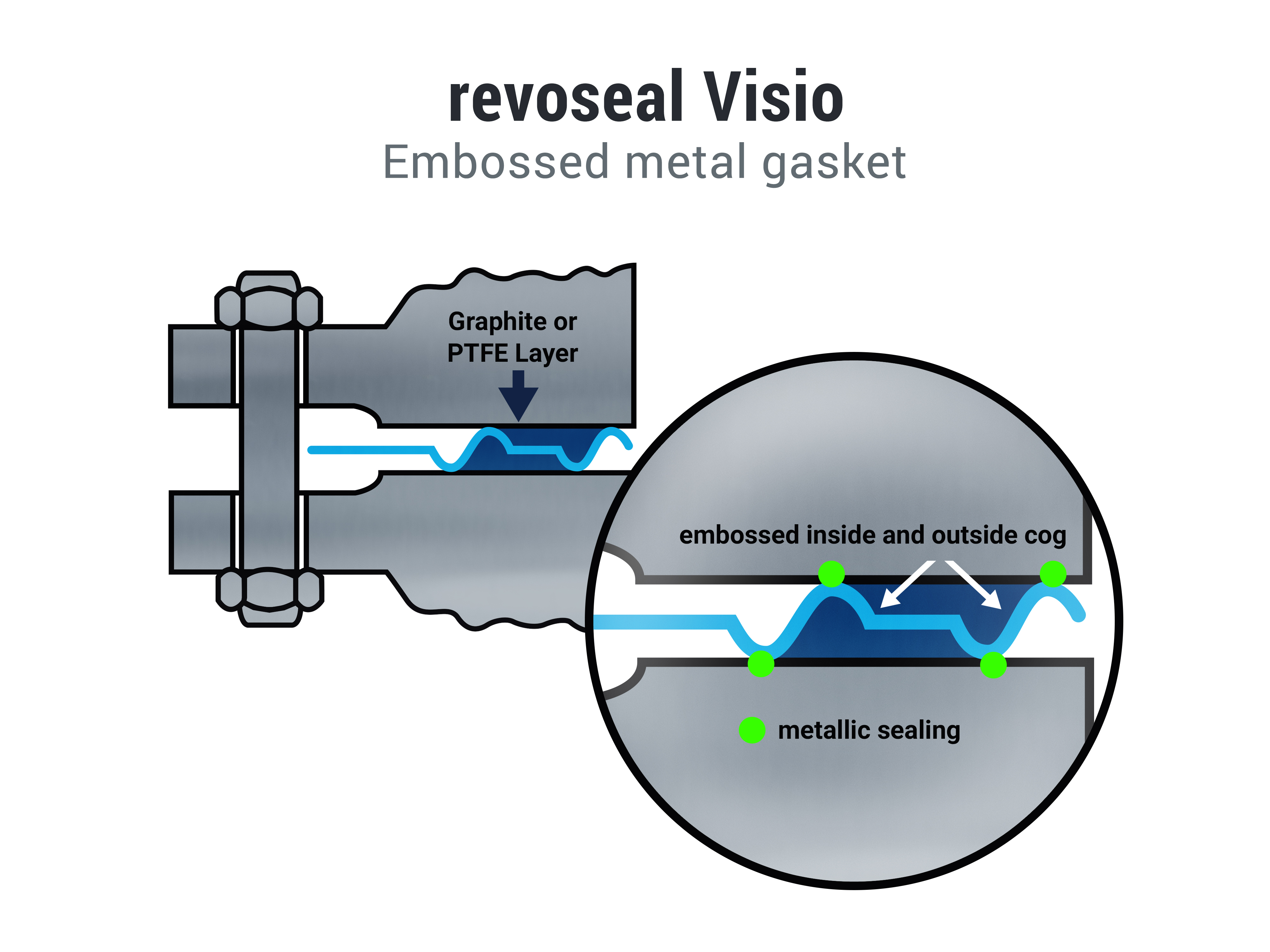

revoseal Visio
- Temperature: -270°C to +500°C
- Embossed metal gasket
- Available with bars for apparatus
revoseal Revolution
- Temperature: -200°C to +500°C
- Pressure: vacuum to 64 bar
- Total thickness: 1.6mm (+/- 0.1mm)
revoseal System Vario
- Accurate centering of the gasket
- No danger of confusion
- Easy assembly
Fiber Gasket
- Wide range of media
- Asbestos-free
- Approvals: TA Luft, BAM, Fire Safe, WRAS
PTFE Gasket
- Temperature: -200°C to +260°C
- PTFE material for chemical resistance
- Used in chemical and food industry
Graphite Gasket
- Good chemical resistance
- Ageing resistant
- Approvals: TA Luft, BAM, Fire Safe, DVGW
Lens Gasket
- Insensitive to overpressing
- Ideal in high pressure applications
- High compressive strength
revoseal SWG
- Spiral wound gaskets
- Available with inner/outer rings
- Multiple material options
revoseal KJ
- Cam profile gasket
- High pressure and temperature loads
- Multiple material options
revoseal RJ
- Types: RJ-O, RJ-RK, RJ-BX
- According to ANSI 16.20
- Multiple material options
Our special gaskets

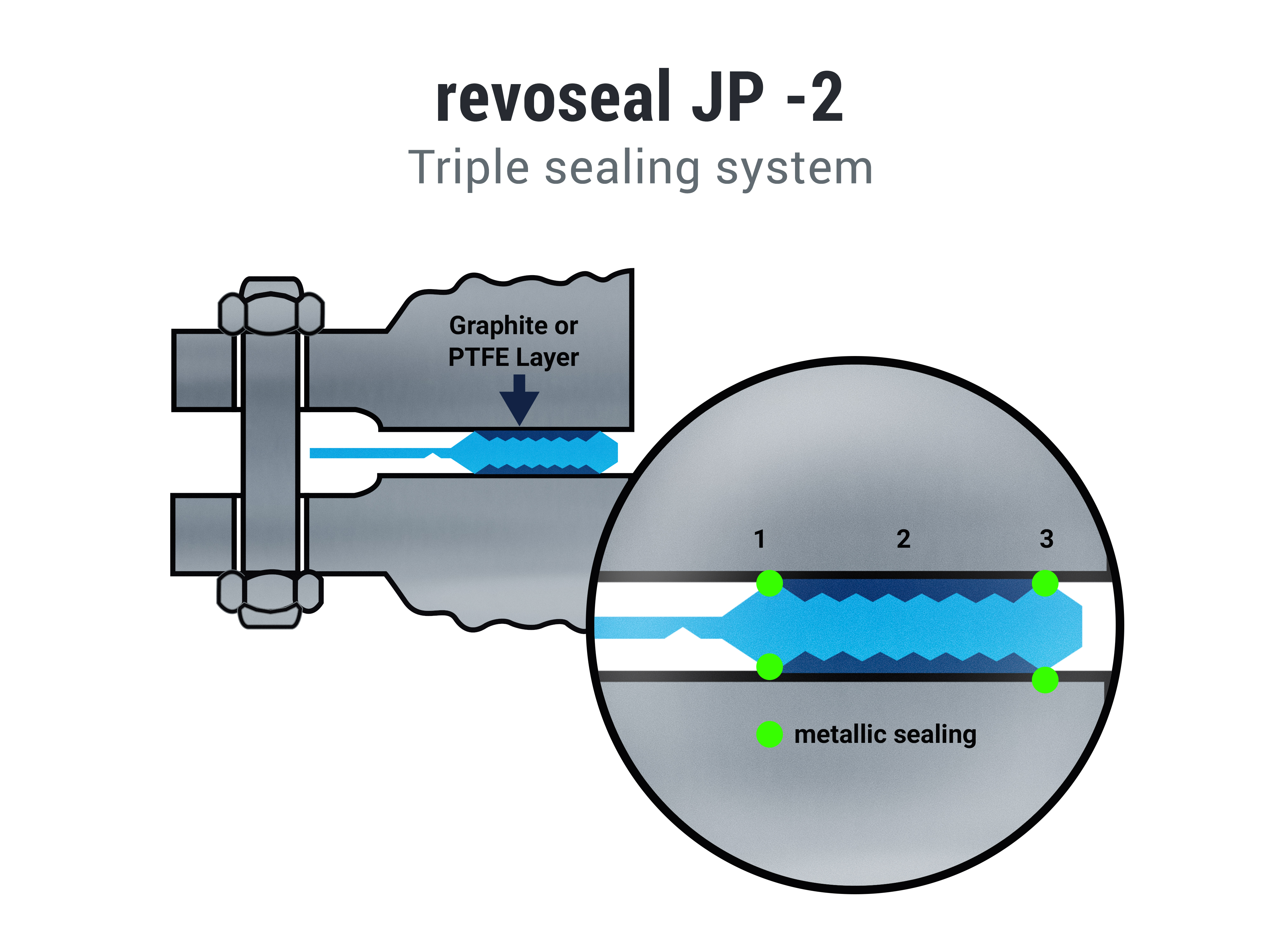

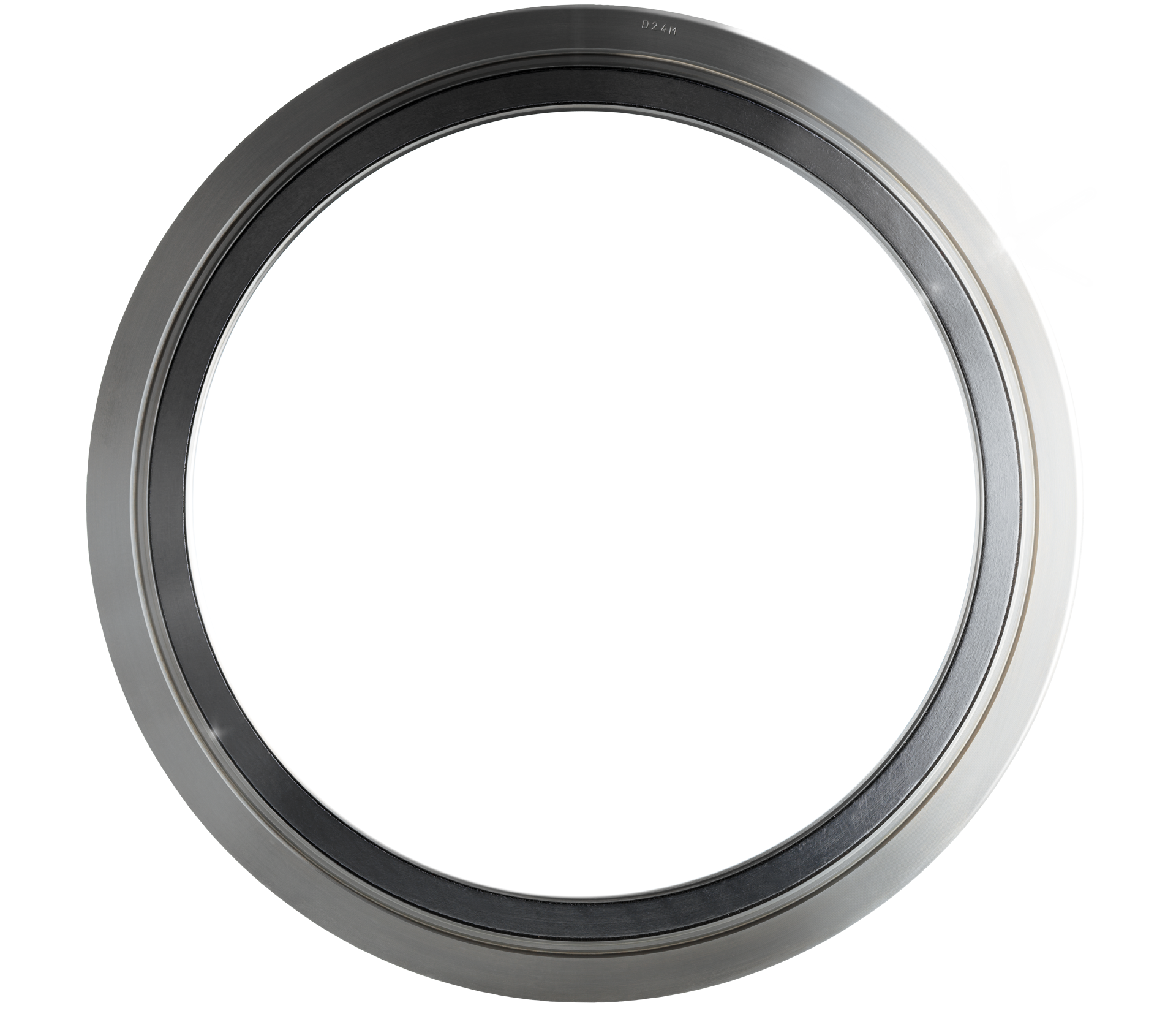

revoseal JG/JP
The internationally patented geometry of the higher external and internal teeth completely encapsulates the graphite or PTFE overlay. The tooth geometry is calculated to realize ideal compression of the graphite and a dual metal gasket even when using low grade screws. The revoseal JG or JP (encapsulated flat profile gaskets) combines the advantages of metallic and soft material sealing in an ideal way.
- Temperature: - 270°C to +1000°C (dependent on the carrier material)
- Pressure: from vacuum to 400 bar (1,500 lbs)
- Lowest leakage rates of all gaskets available on the market
- JG/JP profiles reproduce the tongue and groove principle

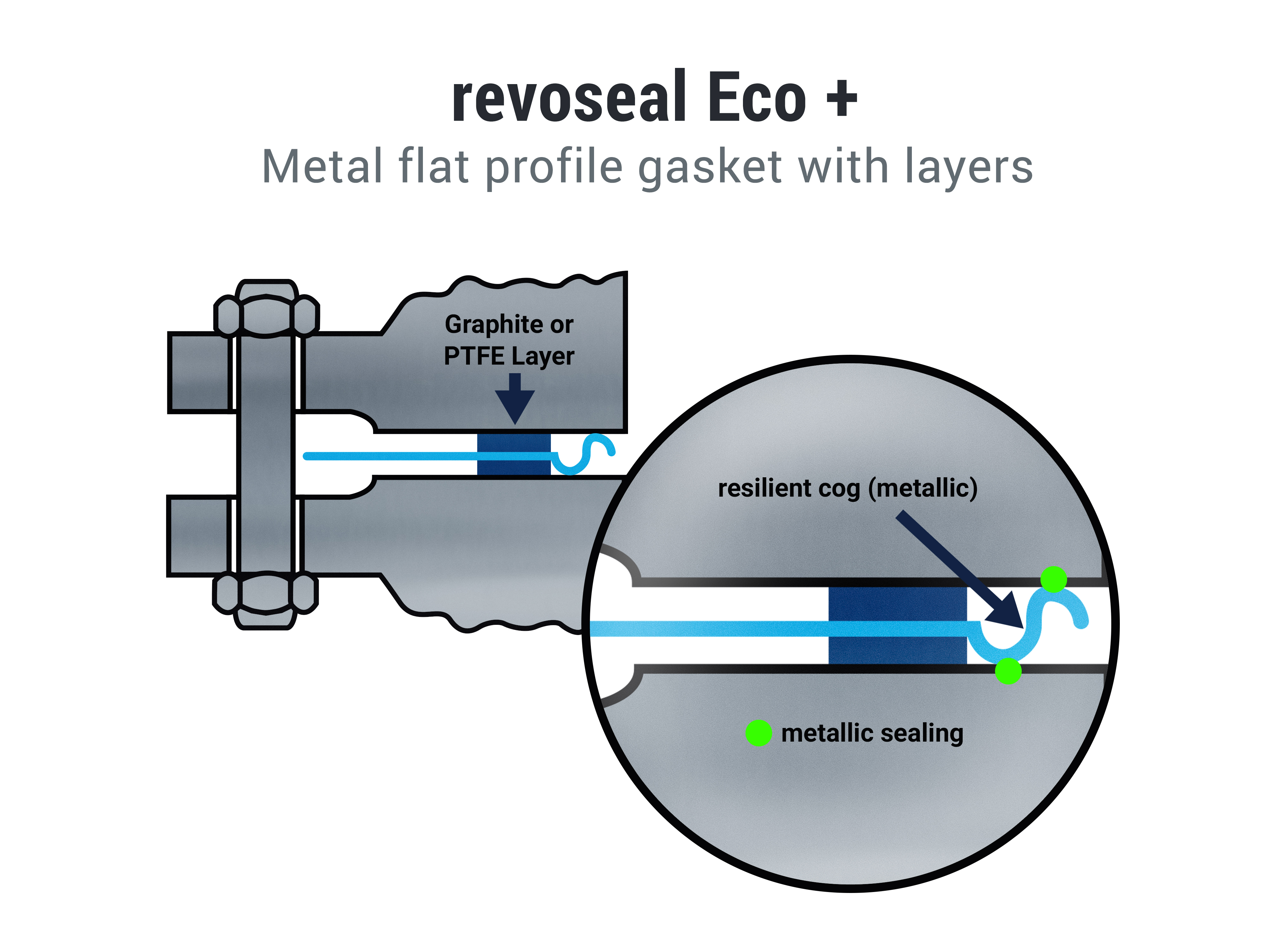

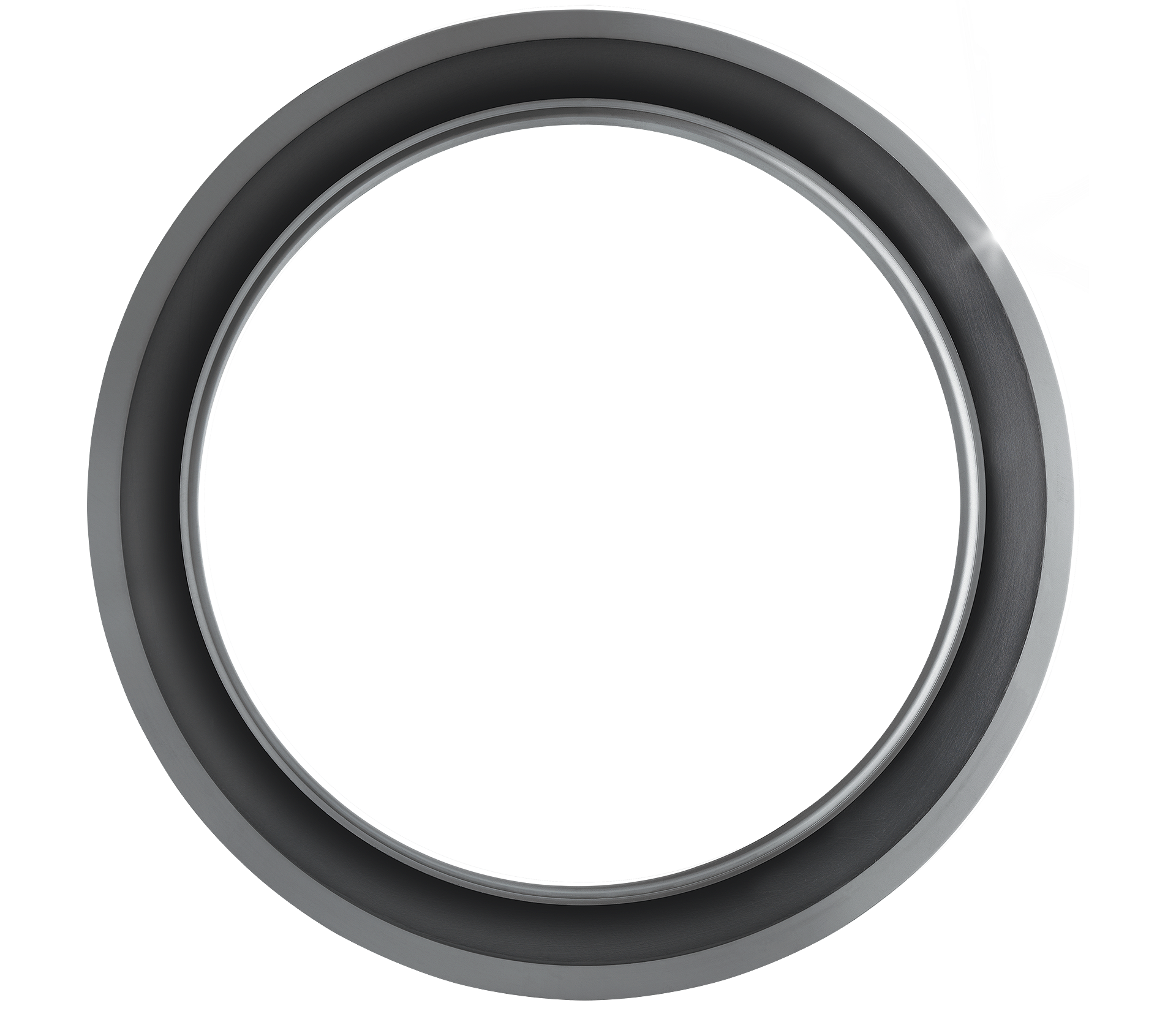

revoseal Eco+/Visio
The Eco+ gasket consists of a solid stainless steel carrier covered on both sides with a narrow graphite or PTFE overlay. The Visio gasket consists of a solid stainless steel carrier with embossed inner and outer teeth and graphite or PTFE overlays on both sides. Towards the media side and, in the case of the Visio, also towards the atmosphere side, a resilient "tooth" is embossed to provide a metallic seal on both sides of the flange. The resilient "tooth" can absorb alternating forces caused by pressure and temperature fluctuations without plastic deformation. There is no need to retighten the bolts when starting up the system, as is the case with comb-profile gaskets, for example.
- Temperature: -270°C to + 500°C
- Pressure range: from vacuum to 160 bar (900 lbs)
- Standard material 1.4571 (additional materials on request)
- Total thickness 1.6 mm (+/- 0.1 mm)

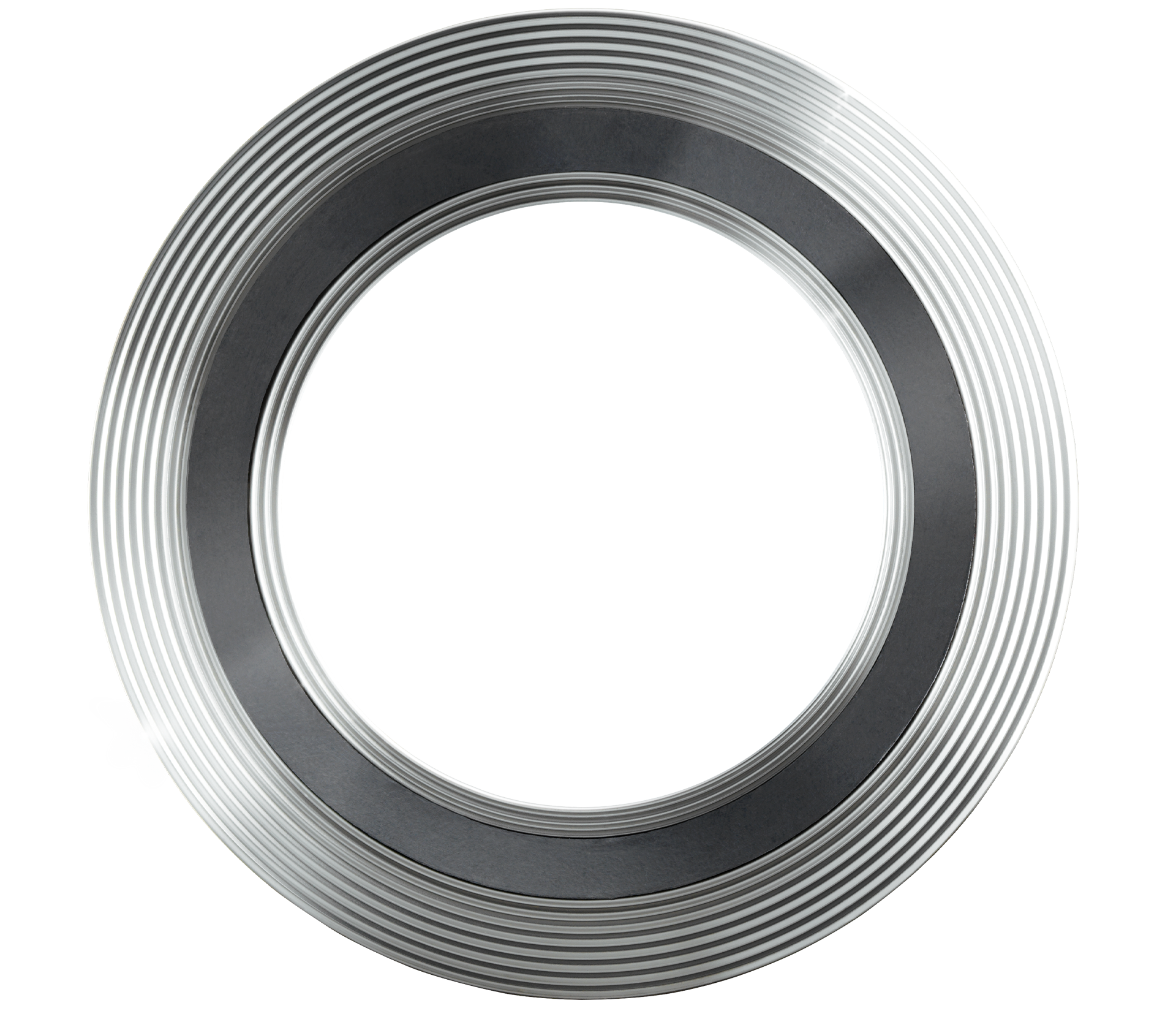

revoseal Revolution
The Revolution gasket is an embossed flat profile gasket made of a flexible stainless steel carrier and encapsulated graphite or PTFE on both sides. The revolutionary design and flexibility of the embossed tooth height provides a dual metal seal as well as encapsulation of the graphite or PTFE. The Revolution's wide range of applications makes it the alternative to all conventional flat gasket types.
- Temperature: -200°C to + 500°C
- Pressure range: from vacuum to 64 bar (400 lbs)
- Available for DIN and ANSI – flanges to DN 400 / 16”
- Total thickness 1.6 mm (+/- 0.1 mm)

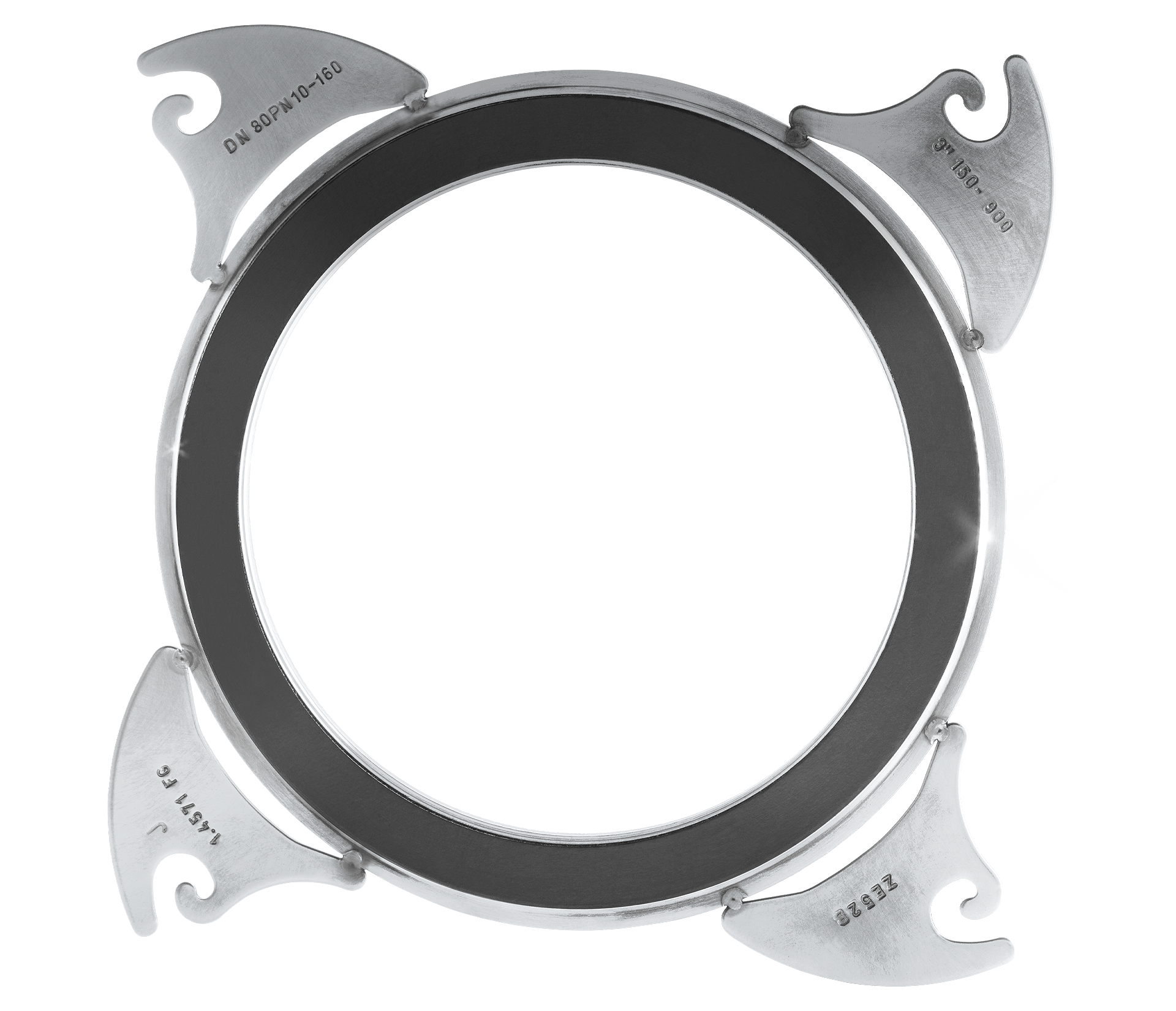

revoseal System Vario
The centering rings of gaskets with the same nominal size but different pressure ratings differ only in their outer diameter when installed. When installing non-corresponding dimensions, this can lead to malfunctions and seal failure. The Vario centering system prevents incorrect use, at the same time reducing the number of gasket types to be kept in stock and increasing plant availability. The solution is revoseal's Vario variable centering system. The shape of the centering segments allows different outside diameters to be compensated. The risk of confusion and decentering is eliminated. Time-consuming positioning by means of expansion shaft screws is no longer necessary.
- Considerable reduction of type varieties
- Accurate centering of the gasket
- Considerable cost-savings in procurement and storage
- Easy assembly at using fatigue-shaft screws
Our standard gaskets
description

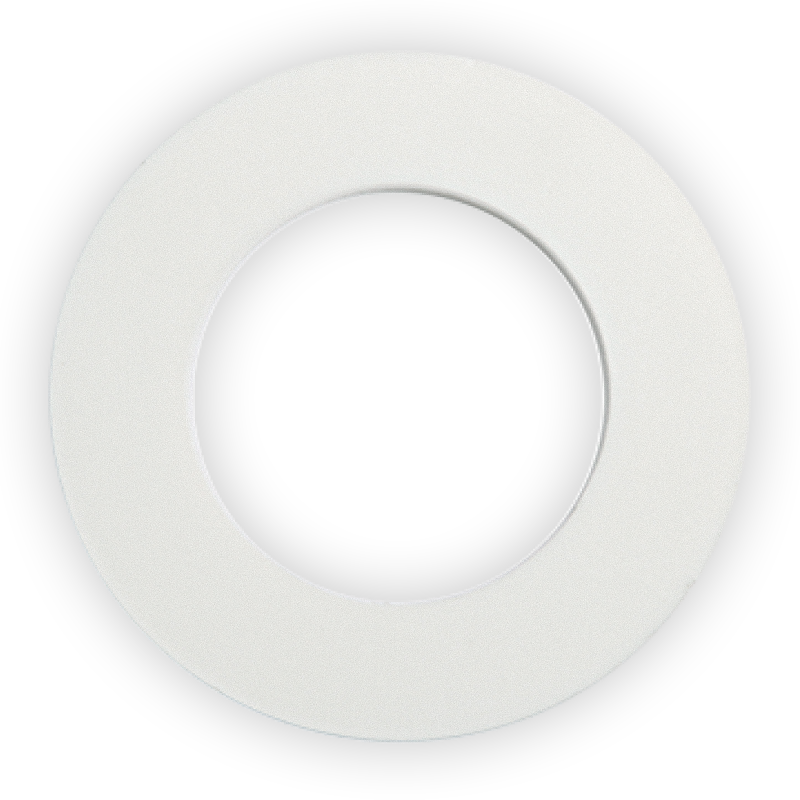

revoseal PTFE gaskets
Flat gaskets made of PTFE are high-quality seals that are used in particular in the chemical and food industries. PTFE seals are almost universally resistant to chemicals and solvents. Pure PTFE is used for low mechanical stress, low pressure to be sealed and low operating temperature [max. 100 °C] of the medium to be conveyed. In a temperature range in which the properties are kept constant, it can be used from -200 °C to +260 °C. Modified PTFE has significantly lower deformation under load even at elevated temperatures and reduction of permeability to gases and vapors due to a low-porosity homogeneous microstructure.
- Thickness: 0.5 - 3.0 mm
- We offer a variety of brands/manufacturers and as well as a high quality alternative with good price performance ratio
- Fabrication standards: DIN 2690 / ANSI / EN1514
- Approvals: TA Luft, BAM, Fire Safe, WRAS
revoseal PTFE gaskets
Flat gaskets made of PTFE are high-quality seals that are used in particular in the chemical and food industries. PTFE seals are almost universally resistant to chemicals and solvents. Pure PTFE is used for low mechanical stress, low pressure to be sealed and low operating temperature [max. 100 °C] of the medium to be conveyed. In a temperature range in which the properties are kept constant, it can be used from -200 °C to +260 °C. Modified PTFE has significantly lower deformation under load even at elevated temperatures and reduction of permeability to gases and vapors due to a low-porosity homogeneous microstructure.
- Thickness: 0.5 - 3.0 mm
- We offer a variety of brands/manufacturers and as well as a high quality alternative with good price performance ratio
- Fabrication standards: DIN 2690 / ANSI / EN1514
- Approvals: TA Luft, BAM, Fire Safe, WRAS

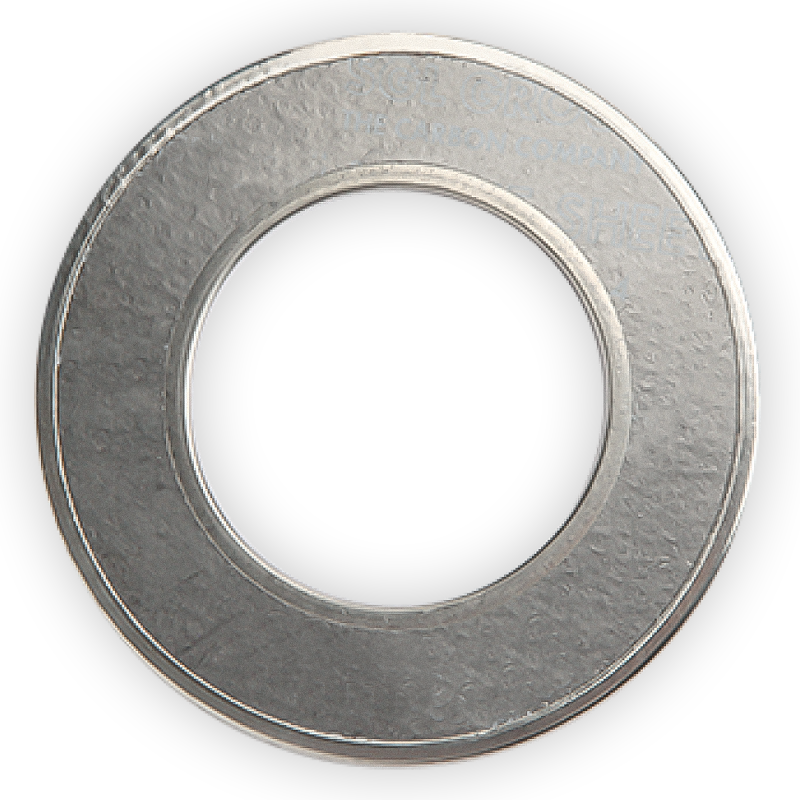

revoseal graphite gaskets
Graphite gaskets are characterized in particular by their high compressibility, very good compensating capacity and good chemical resistance. The high flexibility of graphite allows good adaptability to unevenness and roughness of the flange. Depending on requirements, graphite gaskets can be designed as a pure foil, as a gasket with bonded stainless steel sheet inserts or in a non-adhesive composite with stainless steel foils. The use of an inner flange can increase the operational reliability of graphite gaskets. Graphite gaskets require careful handling during handling and installation to avoid scratching the gasket surface.
- Thickness: 0.5 - 4.0 mm
- We offer a variety of brands/manufacturers and as well as a high quality alternative with good price performance ratio
- Production standards: DIN 2690 / ANSI / EN1514
- Approvals: TA Luft, BAM, Fire Safe, WRAS

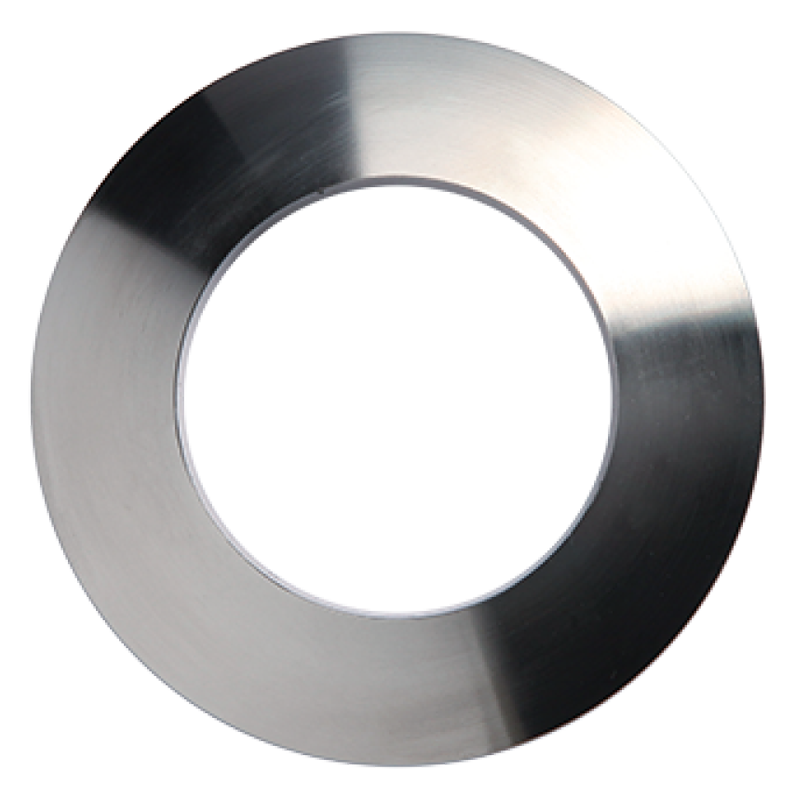

revoseal lens gaskets
Lens gaskets, also known as high-pressure lenses or sealing lenses, are all-metal, machined sealing elements. Sealing lenses are mainly used in the high-pressure sector, preferably in pipe flanges. Their two outer surfaces are curved on both sides. The prerequisite for their use is lens flanges that have a negative of the shape of the lens seal as a mating surface. This design prevents overpressing during assembly due to the disproportionately low increase in pressure. Most of the lens seals used today are manufactured according to the well-known standard DIN 2696, which describes lens seals from DN 10 PN 63 to DN300 PN 400. In addition to this standard, there are many other company specifications or national standards that describe in detail certain shapes and details of lenses. All these special designs are covered by our product range.
- Insensitive to overpressing
- Ideal in high pressure applications
- Wide range of geometries and alloy types
- Roughness of Rz <= 6.3 is required in the radial direction for the sealing surfaces

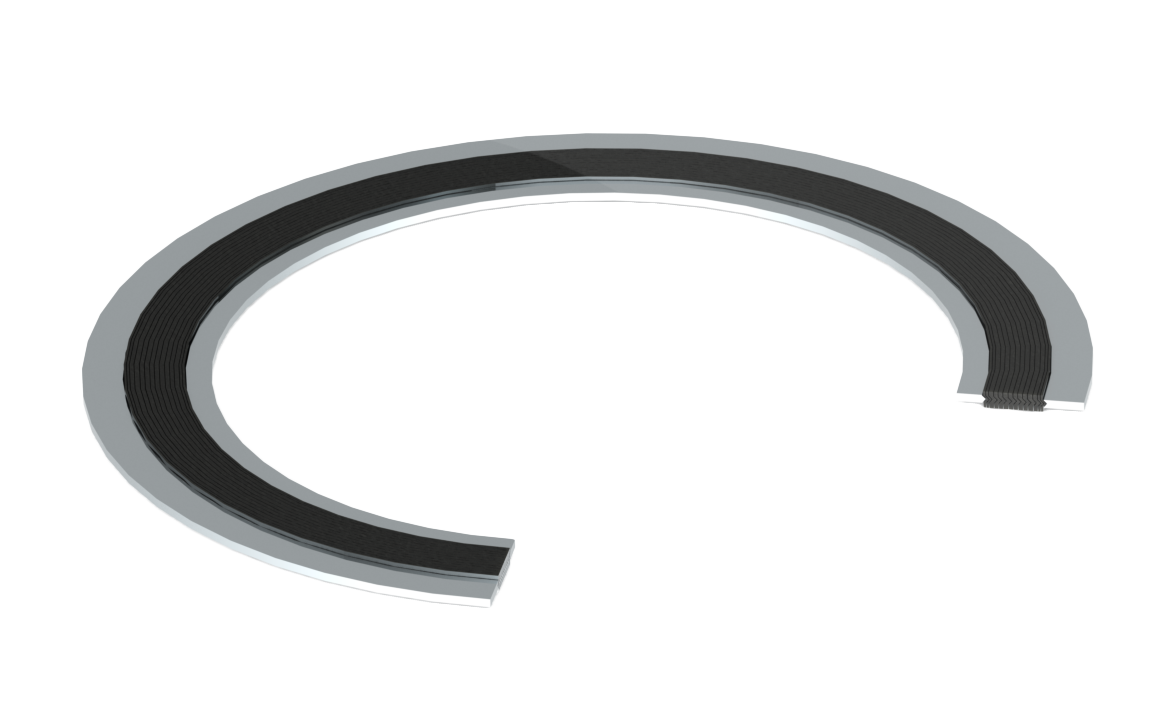

revoseal SWG spiral wound gaskets
Spiral wound gaskets consist of a mixture of metal and filler material. Generally, the gasket has a metal (usually high carbon or stainless steel) wound in a circular spiral outward (other shapes are possible), with the filler material (generally a flexible graphite) wound in the same way, but from the opposite side. This results in alternating layers of filler and metal. The filler in these gaskets acts as the sealing element, while the metal provides structural support. These gaskets have proven reliable in most applications and allow for lower clamping forces than solid gaskets, but at a higher cost.
- Without outer and inner ring
- Total thickness: 4.5 mm
- Fabrication standards: DIN 2690 / ANSI / EN1514
- Manufacturing standards: EN1514-2, ASME B16.20, etc.

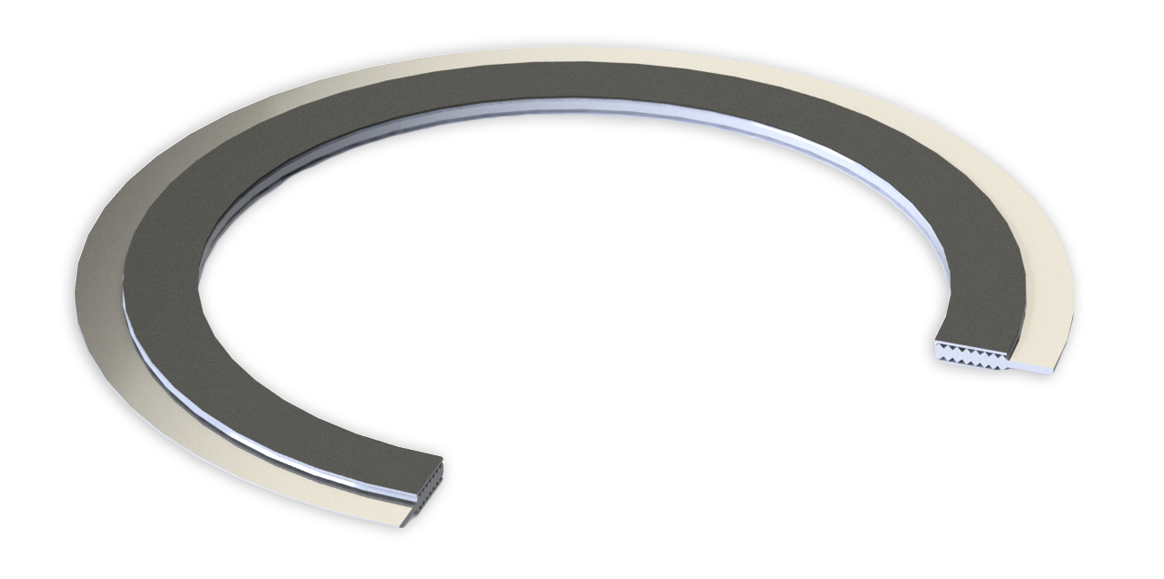

revoseal cam profile gaskets
A cam profile gasket consists of a metallic carrier on which the turned-in comb profile is located. The soft material overlays are applied to this profile. During pressing, the soft material is pressed into the combs, thus forming a thin layer between the comb tips and the sealing surface (flange surface). Comb profile gaskets are used in refineries, chemical and petrochemical plants, and power plants and are excellent for sealing flanges subjected to high pressure and temperature loads. The concentric geometric shape of the metal core profile provides pressure peaks at the tips of the webs, preventing any leakage through the sealing surfaces (labyrinth effect). The metal core means there is no possibility of crushing, so the gasket can withstand extremely high torque loads.
- Total thickness: 5.0 mm (4.0 mm metal core + 2x 0.5 mm graphite overlays / other thicknesses available on request)
- For flanges with tongue and groove
- Also available as an oval comb profile seal.
- Fabrication standards: EN1514-6, EN 12560-6, ASME B16.20, etc.

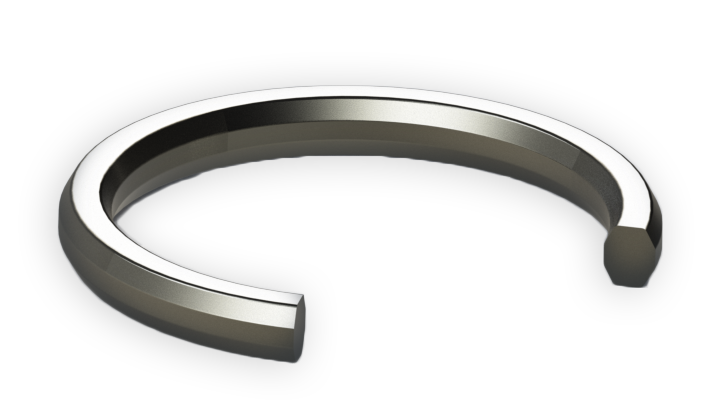

revoseal ring-joint gaskets (RTJ)
Ring-joint gaskets are primarily used in refineries and the petrochemical industry and are a purely metallic sealing body and belongs to the category of static gaskets. The sealing surface is slightly curved. It achieves a sealing effect due to the line contact that occurs during compression between the gasket body and the flange. This requires higher manufacturing qualities, such as lower roughness, compared to a sealing point consisting of a flat gasket and a smooth flange pair. A flat gasket achieves its sealing effect due to the plastic deformation of the gasket body and the resulting snug fit to the flange surface, which greatly reduces leakage paths in the gasket and between the gasket and flange surfaces.
- RJ-O: Oval type
- Designs: according to ANSI 16.20, or API Std 6A
- Certificates: AD2000; EN10204; TüV432/3, others on request
- Manufacturing standard: ASME B16.20

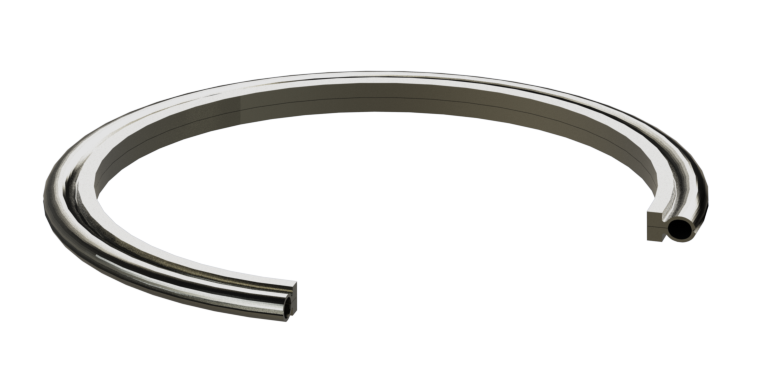

revoseal weld ring gaskets
Weld ring gaskets without an auxiliary gasket are primarily used where very high pressure and very high temperatures are present. We recommend the use of welding ring gaskets with an auxiliary gasket, e.g. spiral wound gasket, where absolute sealing safety of the gasket against hazardous media is required. The weld ring gasket also has the advantage that the welded joint can be undone without major problems
- SJ – 10 Diaphragm weld ring seal
- SJ - 12 with hollow lip to accommodate different radial rotations
- SJ-11; SJ-12; SJ-13; are also available with a secondary seal as a comb profile and spiral wound seal
- As well as lens and various flat seals.
